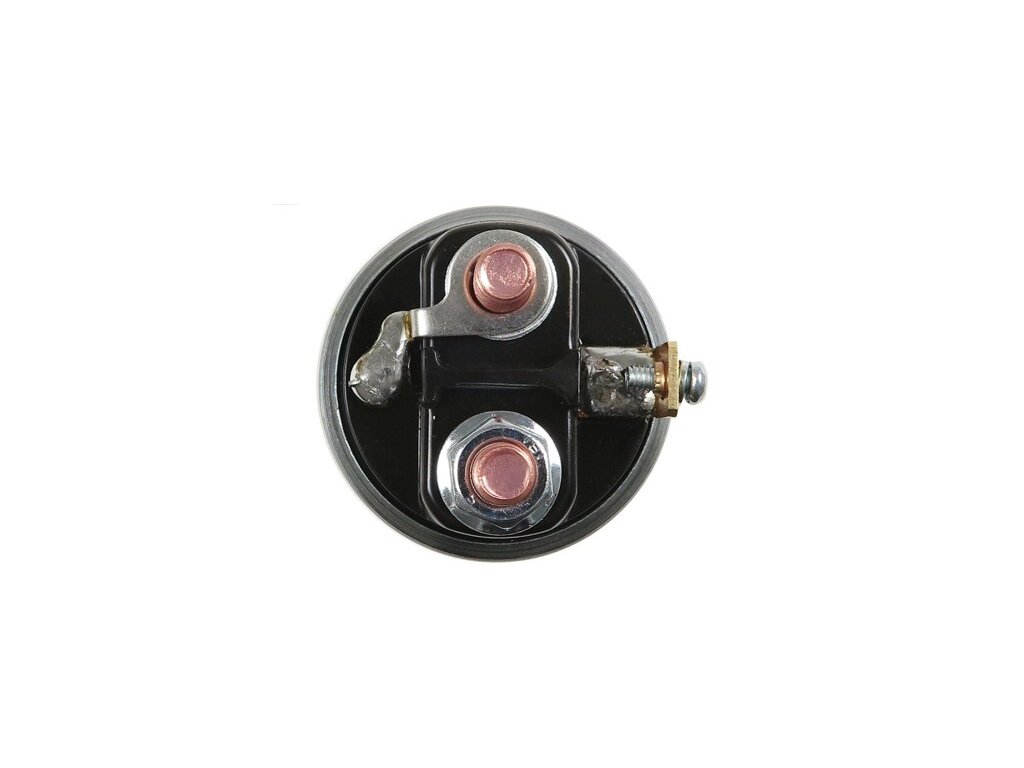

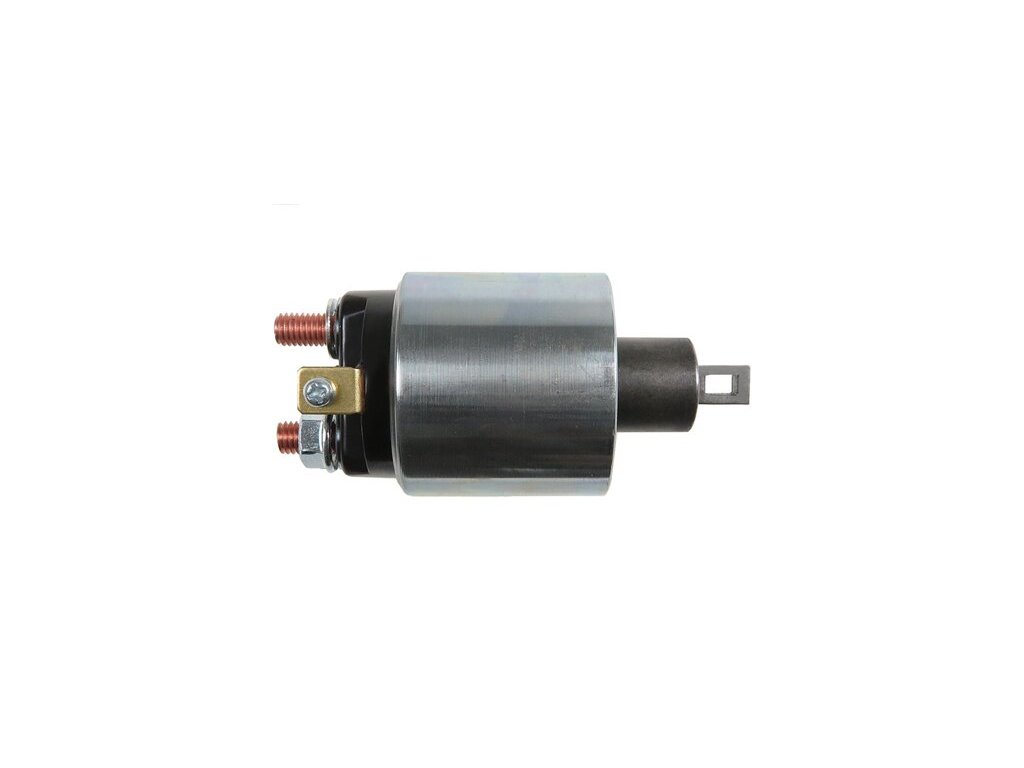

Spínač štartera SS2011
Kód: SS2011
Doprava ZADARMO nad 100€
Kamenná predajňa aj autoservis
Výmenný spôsob agregátov - bez čakania na opravu
Podrobný popis
| ND1779 | SOLENOID |
|---|---|
| Voltage | 12 |
| Bracket | |||
| D | OD/cover | 43.90 |  |
| E | ID/cover | 22.45 | |
| G | B+ | M8 | |
| H | Height/B+ | 12.85 | |
| K | Kl. 50/mm | 9.4 | |
| L | Width/kl. 50 | 14.55 | |
| M | Coil bolt | M8 | |
| N | Coil bolt l. | 11.80 | |
| No./terminals | 3 | |
|
| Electrical specifications | |||
| Voltage | 12 | |
|
| Physical specifications | |||
| A | OD | 52.00 | |
| B | Total length | 106.80 | |
| Further information | |||
| Remarks | Cap: Cargo 139604. Moving contact: Cargo 139605. | |
|
| Drawing | No18 | ||
138957 CARGO CQ2030246 CQ 2114-27613 HITACHI 2114-011RS RS SND1779 WOODAUTOReferenčné číslo Orig. výrobca5811001920 ISUZU5811001921 ISUZU8971502040 ISUZU8971502041 ISUZU8971502042 ISUZU8973860620 ISUZU8980147430 ISUZUS114385 HITACHIS114808 HITACHIS114808A HITACHIS114808B HITACHIS114869 HITACHIS114925 HITACHI
