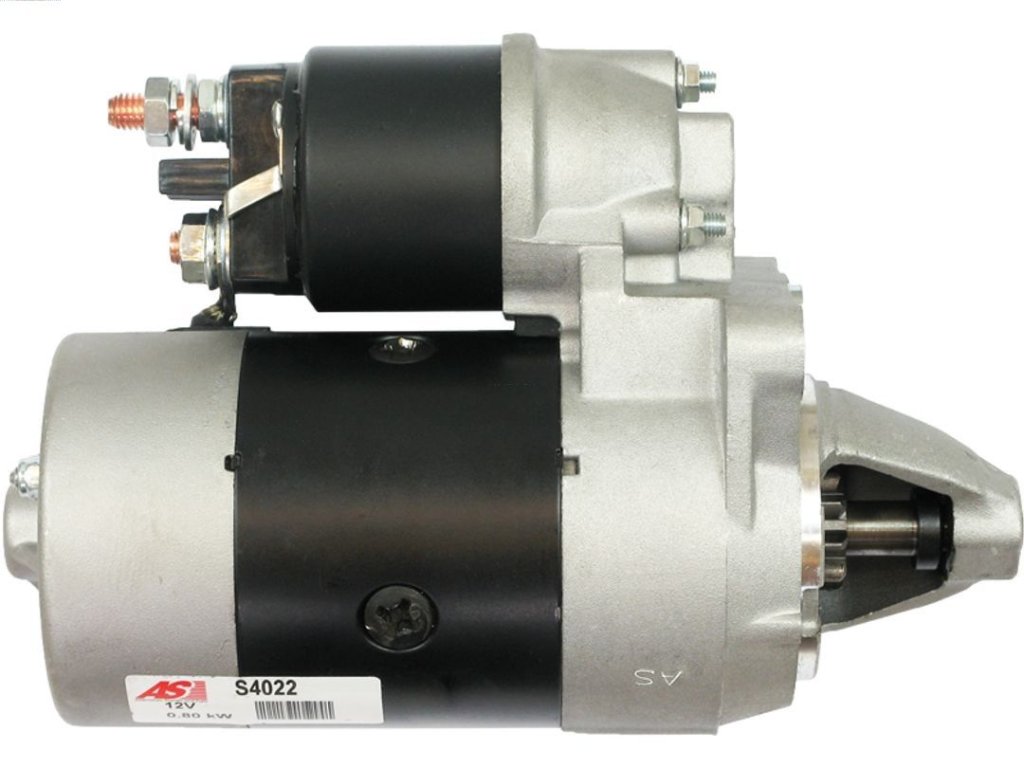

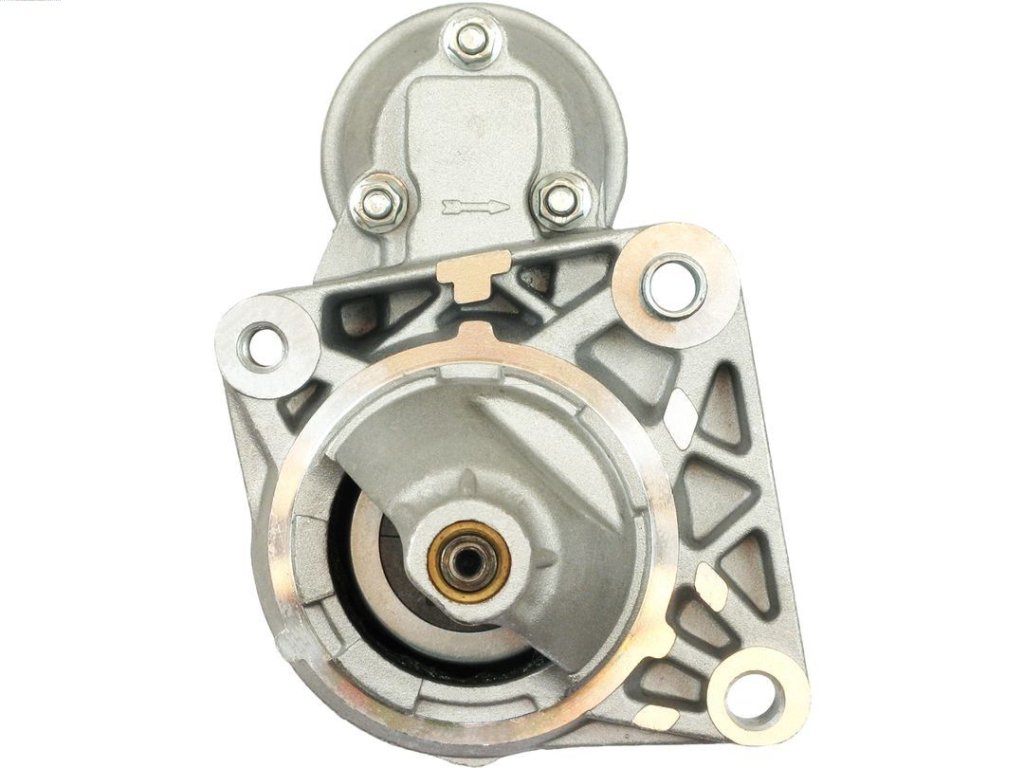

Štarter S4022 0.8kW
Kód: STR52007RV
Podrobný popis
Pred objednaním produktu si identifikujte typ motora, aby nedošlo k omylu.
Identifikované číslo motora (typ) nájdete v technickom preukaze pod číslom 13 (P.5)
| Napätie [ V ] | 12 |
| Príkon [ kW ] | 0.80 |
| Otáčka štartéra | CW |
| Rozmer A [ mm ] | 64.00 |
| Rozmer B [ mm ] | 10.00 |
| Počet zubov [ qty. ] | 9 |
| Počet zubov (zapadá do) [ qty. ] | 9. 10 |
| Počet otvorov v hlavici [ qty. ] | 3 |
| Počet závitových otvorov [ qty. ] | 1 |
| L.1 [ mm ] | 208.00 |
| O.1 [ mm ] | 75.00 |
| O.2 [ mm ] | 108.00 |
| O.3 [ mm ] | 74.00 |
| C.1 [ mm ] | 8.50 |
| C.2 [ mm ] | 8.50 |
| C.3 [ mm ] | M8x1.25 |
AUTOBIANCHI
- Y10 1.1 i.e. Cat, 42 kW, [1990 - 1995] (156C.046)
FIAT
- BRAVA (182_) 1.2 16V 80, 59 kW, [2000 - 2001] (188 A5.000)
- BRAVA (182_) 1.2 16V 80, 60 kW, [1998 - 2002] (182 B2.000)
- BRAVO I (182_) 1.2 16V 80, 59 kW, [2000 - 2001] (188 A5.000)
- BRAVO I (182_) 1.2 16V 80, 60 kW, [1998 - 2000] (182 B2.000)
- CINQUECENTO (170_) 1.1 Sporting (170AH), 40 kW, [1994 - 1998] (176 B2.000)
- MAREA (185_) 1.2 16V, 60 kW, [1998 - 2002] (182 B2.000)
- MAREA Weekend (185_) 1.2 16V, 60 kW, [1998 - 2002] (182 B2.000)
- PALIO (178_, 171_, 371_) 1.6 16V, 74 kW, [1996 - 2002] (178 B3.000)
- PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V (178DXD1A), 74 kW, [1996 - 2001] (178 B3.000)
- PUNTO (176_) 55 1.1, 40 kW, [1993 - 1999] (176 A6.000, 176 B2.000)
- PUNTO (176_) 60 1.2, 43 kW, [1994 - 1999] (176 A7.000)
- PUNTO (176_) 60 1.2 (176AP, 176AR, 176AQ, 176BB), 44 kW, [1993 - 1999] (176 B4.000, 176 B1.000)
- PUNTO (176_) 75 1.2, 54 kW, [1993 - 1999] (176 A8.000)
- PUNTO (176_) 1.2 16V, 63 kW, [1997 - 1999] (176 B9.000)
- PUNTO (176_) 1.4 GT Turbo (176AS_), 96 kW, [1996 - 1999] (176 B6.000)
- PUNTO Kabriolet (176_) 60 1.2, 43 kW, [1994 - 2000] (176 A7.000)
- PUNTO Kabriolet (176_) 85 16V 1.2, 63 kW, [1997 - 2000] (176 B9.000)
- PUNTO Van (176_) 1.1, 40 kW, [1996 - 2000] (176 B2.000)
- PUNTO (188_) 1.2 Natural Power (188BXA1A), 38 kW, [2004 - 2006] (188 A4.000)
- PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, .250), 44 kW, [1999 - 2010] (188 A4.000)
- PUNTO (188_) 1.2 Bifuel, 44 kW, [2007 - 2012] (188 A4.000)
- PUNTO (188_) 1.2 Natural Power, 44 kW, [2003 - 2012] (188 A4.000)
- PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,..., 59 kW, [1999 - 2006] (188 A5.000)
- PUNTO šikmá zadná kapota (188_) 1.2 60, 44 kW, [2000 - 2009] (188 A4.000)
- SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02), 40 kW, [1998 - 2010] (187 A1.000, 176 B2.000)
- SEICENTO / 600 šikmá zadná kapota (287_) 1.1 (187CXB/C), 40 kW, [1998 - 2010] (176 B2.000)
- SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT), 54 kW, [1998 - 2002] (178 B5.000)
- UNO (146_, 158_) 1.0 (146E), 31 kW, [1989 - 1992] (156 A2.000)
- UNO (146_, 158_) 45 i.e. 1.0 (146E, 146A), 33 kW, [1984 - 1995] (156 A2.246, 156 A2.000)
- UNO (146_, 158_) 1.1, 41 kW, [1986 - 2006] (160 A3.000)
LANCIA
- Y10 (156_) 1.1 i.e. Fire (156AG), 37 kW, [1989 - 1995] (156 C.046)
- Y10 (156_) 1.1 i.e. Fire pohon vsetkych kolies (156AG), 37 kW, [1992 - 1995] (156 C.046)
- Y10 (156_) 1.1 Fire (156AG), 40 kW, [1995 - 1995] (176 B2.000)
- Y10 (156_) 1.1 Fire pohon vsetkych kolies (156AG), 40 kW, [1995 - 1995] (176 B2.000)
- Y10 (156_) 1.3 i.e. (156AF), 53 kW, [1989 - 1995] (156 B.000, 146 A 5.046)
- Y (840_) 1.2 (840AA, 840AF1A), 44 kW, [1996 - 2003] (188 A4.000, 840 A3.000)
- Y (840_) 1.2 16V (840AG1A), 59 kW, [2000 - 2003] (188 A5.000)
- Y (840_) 1.2 16V (840AD), 63 kW, [1997 - 2003] (176 B9.000)
- YPSILON (843_) 1.2 (843.AXB1A), 59 kW, [2003 - 2011] (188 A5.000)
-
EAN
- 5901259422566
OE
- 0001113006
- 0001116005
- 063521130060
- 0986017030
- 0986017031
- 10796
- 10796H
- 10796V
- 11.130.421
- 111422
- 11679
- 11883
- 20404261BN
- 20404261RE
- 20404701RE
- 20500989
- 20513002
- 22.0796
- 22.0796M
- 220024
- 220182
- 25-1480
- 25-2419
- 25-3055
- 25-3096
- 30989N
- 30989R
- 331115
- 331344
- 3829
- 42017030
- 42114903
- 432643
- 455553
- 46231531
- 46429594
- 46430785
- 46473785
- 46476785
- 46518059
- 500.514.093
- 500.514.093.000
- 500.514.093.050
- 500.514.093.215
- 500.514.093.265
- 500.514.093.266
- 500.514.093.311
- 500.514.093.500
- 500.514.093.605
- 55196400
- 6010331
- 6015125
- 6030107
- 6030162
- 6030162.0
- 6030162.2
- 63101002
- 63101015
- 63102007
- 63103015
- 63201002
- 63222880
- 63222888
- 63222889
- 63222890
- 63222936
- 63223200
- 71721252
- 71721253
- 71721308
- 71752055
- 71782353
- 726020
- 726820
- 7735162
- 7772456
- 7772459
- 7796598
- 8017030
- 807000.0
- 8212205
- 88212205
- 8EA012526-931
- 8EA732651-001
- 943201015010
- 944280170300
- AES1298
- AES9189
- AEU1192
- AZE1202
- AZE1511
- CS796
- CST10331
- CST10331AS
- CST10331ES
- CST10331GS
- CST10331OS
- CST10331RS
- CST15125
- CST15125AS
- CST15125ES
- CST15125GS
- CST15125OS
- CST15125RS
- CST30107OS
- CST30162
- CST30162AS
- CST30162ES
- CST30162GS
- CST30162OS
- CST30162RS
- D6RA59
- DRS2555
- DRS3274
- DRS3555
- DS4384
- EAA-121181
- F000AL0319
- GS223200-A
- IS0763
- LRS00989
- LRS01586
- LRS02095
- LRS02104
- LRS1586
- LRS2095
- LRS2104
- LRS989
- LRT00198
- MAV123310
- MAV2210
- MAV2270
- MAV321620
- ND159
- PRSL014
- PRSS169
- RNL1703
- S12MA0044A2
- S4022
- SG0139
- SS221
- STA0005R
- STE0796
- STR00100
- STR52007
- STR90057
- STRL014
- STRL126
- STRS169
- STRS233
- UD13970S
- VALD6RA59
- VS287
| Marka | Model | Typ | Rok | |
|---|---|---|---|---|
| FIAT | Cinquecento 1.1 Sporting | [176B2.000] | 10.1994-01.1998 | |
| FIAT | Marea 1.2 16V | [182B2.000] | 10.1998- | |
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998- | |
| FIAT | Siena 1.2 | [178B5.000] | 09.1998- | |
| FIAT | Brava 1.2 16V | [182B2.000] | 12.1998-10.2000 | |
| FIAT | Brava 1.2 16V | [188A5.000] | 12.1998- | |
| FIAT | Bravo 1.2 16V | [182B2.000] | 12.1998-10.2000 | |
| FIAT | Bravo 1.2 16V | [188A5.000] | 12.1998- | |
| FIAT | Punto 1.1 | [176B2.000] | 01.1995-08.1999 | |
| FIAT | Punto 1.1 i.e. | [176A6.000] | 09.1993-09.1999 | |
| FIAT | Punto 1.1 i.e. | [176B2.000] | 05.1997-09.1999 | |
| FIAT | Punto 1.2 | [176A7.000] | 01.1994- | |
| FIAT | Punto 1.2 | [176A8.000] | 01.1994-09.1999 | |
| FIAT | Punto 1.2 | [176B1.000] | 05.1995- | |
| FIAT | Punto 1.2 | [176B4.000] | 06.1995-09.1999 | |
| FIAT | Punto 1.2 | [188A4.000] | 07.1999- | |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997- | |
| FIAT | Punto 1.2 16V | [188A5.000] | 09.1999- | |
| FIAT | Punto 1.2 Natural Power | [188A4.000] | 09.2003- | |
| LANCIA | Y 1.1 | [176B2.000] | 11.1995-06.2000 | |
| LANCIA | Y 1.2 | [188A4.000] | 03.2000-06.2000 | |
| LANCIA | Y 1.2 | [840A3.000] | 03.1996-09.2003 | |
| LANCIA | Y 1.2 16V | [176B9.000] | 04.1997-06.2000 | |
| LANCIA | Y10 1.1 Avenue | [176B2.000] | 09.1995-12.1995 | |
| LANCIA | Y10 1.1 Avenue 4WD | [176B2.000] | 09.1995-12.1995 | |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 10.1992- | |
| LANCIA | Y10 1.1 i.e. Fire 4WD | [156C.046] | 09.1992-12.1995 |
Nr referencyjny Producent0001113006 BOSCH0001116005 BOSCH0986017030 BOSCH0986017031 BOSCH11.130.421 ISKRA111422 CARGOSTR52007 WOODAUTO25-1480 ELSTOCK25-2419 ELSTOCK25-3055 ELSTOCK432643 VALEO455553 VALEO46429594 FIAT46518059 FIAT55196400 FIAT63101002 MAGNETI MARELLI63102007 MAGNETI MARELLI63201002 MAGNETI MARELLI63222888 MAGNETI MARELLI63222889 MAGNETI MARELLI63222936 MAGNETI MARELLI63223200 MAGNETI MARELLI7772459 FIAT7785449 FIAT7796598 FIAT8EA732651-001 HELLAAZE1202 ISKRAAZE1511 ISKRACS796 HC PARTSD6RA59 VALEODRS2555 DELCODRS3274 DELCODRS3555 DELCOF000AL0319 BOSCHIS0763 ISKRALRS00989 LUCASLRS02095 LUCASLRS02104 LUCASLRT00198 LUCASND159 VALEOVS287 VALEO BOSCH 0001113006 BOSCH 0986017031 BOSCH 1703 FIAT/MARELLI 46231531 FIAT/MARELLI 46430785 FIAT/MARELLI 63101002 FIAT/MARELLI 63102007 FIAT/MARELLI 63222889 FIAT/MARELLI 63222936 FIAT/MARELLI 63223200 FIAT/MARELLI 7772459 FIAT/MARELLI 7796598 LUCAS LRS00989 LUCAS LRS989 LUCAS LRT00198 LUCAS LRT198 VALEO 455553 VALEO D6RA59 OE čísla Značka0 001 113 006 BOSCH0 001 116 005 BOSCH0 986 017 030 BOSCHDM (R) 12V 0,7 KW BOSCHF 000 AL0 319 BOSCH318.053.092 DELCO REMYDRS 3274 DELCO REMYDRS3274 DELCO REMYDRS3555 DELCO REMY46429594 FIAT46518059 FIAT55196400 FIAT7772459 FIAT7785449 FIAT7796598 FIAT732 651-001 HELLA42 017 030 HERTH+BUSS ELPARTSCS796 HOLGER CRISTIANSEN72-0011 KAGER11.130.421 LETRIKA11.130.763 LETRIKAAZE1202 LETRIKAAZE1511 LETRIKAIS0 763 LETRIKASS221 LOMBARDINILRT198 LUCAS ELECTRICAL0631 01002 MAGNETI MARELLI0632 22888 MAGNETI MARELLI0632 22889 MAGNETI MARELLI0632 22936 MAGNETI MARELLI0632 23200 MAGNETI MARELLI6310 2007 MAGNETI MARELLI9432 22889 MAGNETI MARELLI20500989 PRESTOLITE ELECTRIC4131 SPIDANLRS989 TRWLRT198 TRW455553 VALEOD6RA59 VALEOND159 VALEOVS287 VALEO
